| Image |
Part Number |
Cable |
Center contact |
Outer contact |
Body plating |
Outline drawing |
Data Sheet |
 |

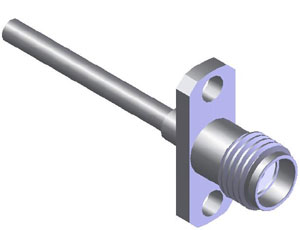

5015.SMA.JSC.01.110 |
UT47 |
Solder |
Solder |
Gold |
 |
|
|
5016.SMA.JSC.02.110 |
UT85, Flexiform405, RG405/U |
Solder |
Solder |
Gold |
|
|
|
5017.SMA.JSC.03.110 |
UT141, Flexiform402, RG402/U |
Solder |
Solder |
Gold |
|
|
 |

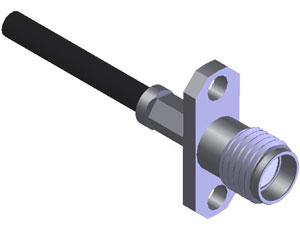

5163.SMA.JSC.05.111 |
RG178B/U, RG196A/U |
Solder |
Crimp |
Gold |
|
|
|
5164.SMA.JSC.06.111 |
RG174/U, RG188A/U, RG316/U |
Solder |
Crimp |
Gold |
|
|
|
5165.SMA.JSC.07.111 |
RG316D/U |
Solder |
Crimp |
Gold |
|
|
 |

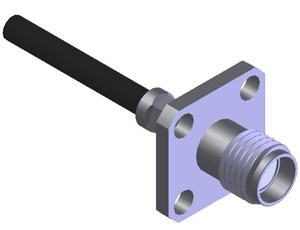

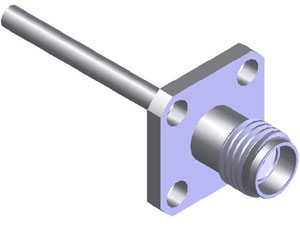

5018.SMA.JSC.01.110 |
UT47 |
Solder |
Solder |
Gold |
|
|
|
5019.SMA.JSC.02.110 |
UT85, Flexiform405, RG405/U |
Solder |
Solder |
Gold |
|
|
|
5020.SMA.JSC.03.110 |
UT141, Flexiform402, RG402/U |
Solder |
Solder |
Gold |
|
|
 |
5108.SMA.JSC.05.111 |
RG178B/U, RG196A/U |
Solder |
Crimp |
Gold |
|
|
|
5167.SMA.JSC.06.111 |
RG174/U, RG188A/U, RG316/U |
Solder |
Crimp |
Gold |
|
|
|
5168.SMA.JSC.07.111 |
RG316D/U |
Solder |
Crimp |
Gold |
|
|
