Series	Impedance	Frequency	Coupling mechanism
SMP	50Ω	40GHz	Smooth /limited/full detent
MMCX	50Ω	6GHz	snap-on
MCX	50Ω	6GHz	snap-on
1.0/2.3	50Ω	4GHz	slide-on
3.5mm	50Ω	34GHz	screw-on
2.92mm	50Ω	40GHz	screw-on
2.4mm	50Ω	50GHz	screw-on
SMA	50Ω	18GHz	screw-on
SMB50Ω	50Ω	4GHz	snap-on
SMB75Ω	75Ω	4GHz	snap-on
SSMB	50Ω	12.4GHz	snap-on
SMC	50Ω	10GHz	screw-on
SMS	50Ω	4GHz	slide-on
BNC50Ω	50Ω	4GHz	bayonet
BNC75Ω	75Ω	1GHz	bayonet
TNC50Ω	50Ω	11GHz	screw-on
TNC75Ω	75Ω	1GHz	screw-on
N	50Ω	11GHz	screw-on
7/16	50Ω	7.5GHz	screw-on
TERMINAL



电缆组件



我们能够设计制造标准的或者客户定制的柔性，半柔，半钢，低损耗和波纹管电缆组件。我们的电缆装配车间拥有精密的自动装配机，能保证所生产的电缆组件低成本，高质量。

	电缆切剥线系统
	半刚/半柔电缆组件
	柔性电缆组件
	波纹管电缆组件
	低频电缆组件及线束



转接器



兆科能够提供全系列的转接器解决方案。以下的转接器模块上所标的数字，能轻松帮您找到您所需要的产品。

系列内转接器

系列间转接器



AISG 连接器



兆科能够提供全系列的AISG 连接器解决方案。



射频测试组件



兆科能够提供全系列的AISG 连接器解决方案。

Product data
Product data	Description		Insertion loss (dB) 25℃
	Connectors	Cable Length	up to 0.9GHz	0.9to 1.8GHz	1.8to 3GHz

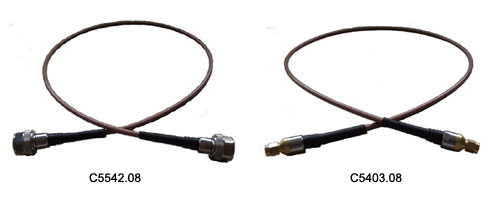

C5542.08-01	N, Male,   Straight / N,  Male, Straight	1000mm	< 0.46	< 0.65	< 0.88
C5403.08-01	3.5mm, Male,  Straight /  3.5mm, male,  Straight	1000mm	< 0.46	< 0.65	< 0.88

Electrical Data
Impedance	50 Ω
Operating frequency	3 GHz
Insulation resistance	≥5000 MΩ
Dielectric withstand voltage AC r.m.s	≤1500 V
Capacitance	94 pF/m
Velocity of propagation	70%
Shielding effectiveness	＞-80 dB
Return loss	≤-32dB(upto1.8GHz) ≤-30dB(1.8to3GHz)
	up to 0.9GHz	0.9 to 1.8GHz	1.8 to 3GHz
Insertion loss vs.shaking (dB)	< 0.03	< 0.03	< 0.03
Insertion loss vs.bending (dB)	< 0.03	< 0.03	< 0.03
Mechanical Data
Min. bending radius dynamic	50 mm
Recommended mating torque	0.7～1.1 Nm
Environmental Data
Operating termperature	-55℃ to +85℃
2002/95/EC (ROHS)	compliant
Material Data
Piece Parts			Surface Plating
center contact	Beryllium copper		Au
body	Brass		CuZnSn(N)
			Au(3.5mm)
coupling nut	Brass		CuZnSn(N)
			Au(3.5mm)
insulator	TPX RT18		-

Product data
Product data	Description		Insertion loss (dB) 25℃
	Connectors	Cable Length	up to 2GHz	2 to 3GHz	3 to 6GHz	6 to 10GHz	10to 18GHz

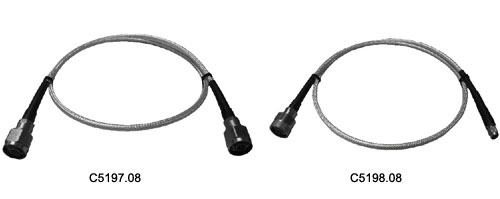

C5197.08-01	N, Male,   Straight / N,  Male, Straight	1000mm	< 0.68	< 0.87	< 1.24	< 1.67	< 2.36
C5198.08-01	3.5mm, Male,  Straight /  3.5mm, male,  Straight	1000mm	< 0.68	< 0.87	< 1.24	< 1.67	< 2.36

Electrical Data
Impedance	50 Ω
Operating frequency	18 GHz
Insulation resistance	≥5000 MΩ
Dielectric withstand voltage AC r.m.s	≤1500 V
Capacitance	96.4 pF/m
Velocity of propagation	70%
Shielding effectiveness	＞-90 dB
Return loss	≤-30dB(upto3GHz) ≤-27dB(3to6GHz) ≤-21dB  (6to12GHz) ≤-19dB(12to18GHz)
	up to 1GHz	1 to 2GHz	2 to 3GHz	3 to 5GHz	5 to 6GHz
Insertion loss vs.shaking (dB)	< 0.03	< 0.03	< 0.03	< 0.03	< 0.03
Insertion loss vs.bending (dB)	< 0.03	< 0.03	< 0.03	< 0.05	< 0.05
Phase stability vs. bending  (degree)	+/-2.0	+/-3.0	+/-4.0	+/-6.0	+/-6.0
Mechanical Data
Min. bending radius dynamic	50 mm
Recommended mating torque	0.7～1.1 Nm
Environmental Data
Operating termperature	-55℃ to +85℃
2002/95/EC (ROHS)	compliant
Material Data
Piece Parts	Material			Surface Plating
center contact	Beryllium copper			Au
body	Stainless steel			Passivated
coupling nut	Stainless steel			Passivated
insulator	TPX RT18			-

Product data
Product data	Description		Insertion loss (dB) 25℃
	Connectors	Cable Length	up to 1GHz	1 to 3GHz	3 to 5GHz	5 to 10GHz	10to 18GHz
C5416.08-01	N, Male,   Straight / N,  Male, Straight	800mm	< 0.33	< 0.55	< 0.69	< 0.98	< 1.30
C5401.08-01	3.5mm, Male,  Straight /  3.5mm, male,  Straight	800mm	< 0.33	< 0.55	< 0.69	< 0.98	< 1.30

Electrical Data
Impedance	50 Ω
Operating frequency	18 GHz
Insulation resistance	≥5000 MΩ
Dielectric withstand voltage AC r.m.s	≤1500 V
Capacitance	82 pF/m
Velocity of propagation	80%
Shielding effectiveness	＞-90 dB
Return loss	≤-28dB(upto3GHz) ≤-25dB(4to6GHz) ≤-20dB  (6to18GHz)
	up to 2GHz	2to 4GHz	4 to 6GHz	6 to 12GHz	12 to 18GHz
Insertion loss vs.shaking (dB)	< 0.03	< 0.03	< 0.03	< 0.03	< 0.03
Insertion loss vs.bending (dB)	< 0.03	< 0.04	< 0.04	< 0.05	< 0.05
Phase stability vs. bending  (degree)	+/-2.0	+/-4.0	+/-4.0	+/-6.0	+/-6.0
Mechanical Data
Min. bending radius dynamic	50 mm
Recommended mating torque	0.7～1.1 Nm
Environmental Data
Operating termperature	-55℃ to +85℃
2002/95/EC (ROHS)	compliant
Material Data
Piece Parts	Material			Surface Plating
center contact	Beryllium copper			Au
body	Stainless steel			Passivated
coupling nut	Stainless steel			Passivated
insulator	PEI			-
Armour jacket	Stainless steel			Passivated

Product data
Part Number	Description

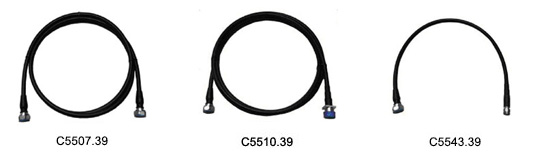

C5507.39	7/16, Male, Straight /  7/16, Male, Straight
C5510.39	7/16, Male, Straight / 7/16,  Female, Straight
C5543.39	7/16, Male, Straight / N,  Male, Straight

Electrical Data
Impedance	50 Ω
Operating frequency	3 GHz
PIM	≤-125dBm (2×43dBm carriers)
Insulation resistance	≥10000 MΩ
Dielectric withstand voltage AC  r.m.s	≤2500 V (C5507.39/C5510.39)
	≤2000 V (C5543.39)
VSWR	≤1.10(upto3GHz
Mechanical Data
Mating cycles	≥500
Minimum bend radius ,  Multiple bends	50 mm
Number bends,Minimum	20
Recommended mating torque	25～30   Nm     7/16
	0.7～1.1  Nm     N
Environmental Data
Operating termperature	-55℃ to +85℃
2002/95/EC (ROHS)	Compliant
Material Data
Piece Parts	Material	Surface Plating
center contact	Beryllium copper	Ag
body	Brass	Ag
coupling nut	Stainless steel (N)	Passivated
	Brass (7/16)	CuSnZn
insulator	PTFE	-
