| Image |
Part Number |
Cable |
Center contact |
Outer contact |
Body plating |
Outline drawing |
Data Sheet |
 |

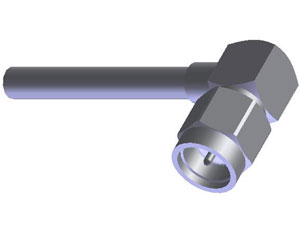

5007.SMA.PRC.01.111 |
UT47 |
Solder |
Solder |
Gold |
 |
|
|

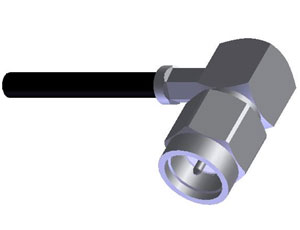

5008.SMA.PRC.02.111 |
UT85, Flexiform405, RG405/U |
Solder |
Solder |
Gold |
|
|
|
5008.SMA.PRC.02.141 |
UT85, Flexiform405, RG405/U |
Solder |
Solder |
Passivated |
|
|
|
5009.SMA.PRC.03.111 |
UT141, Flexiform402, RG402/U |
Solder |
Solder |
Gold |
|
|
|
5009.SMA.PRC.03.141 |
UT141, Flexiform402, RG402/U |
Solder |
Solder |
Passivated |
|
|
 |

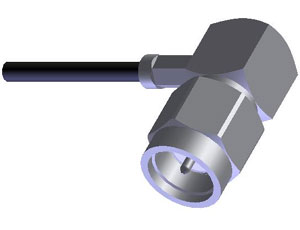

5010.SMA.PRC.05.111 |
RG178B/U, RG196A/U |
Solder |
Crimp |
Gold |
|
|
 |
5011.SMA.PRC.06.111 |
RG174/U, RG188A/U, RG316/U |
Solder |
Crimp |
Gold |
|
|
|
5012.SMA.PRC.07.111 |
RG316D/U |
Solder |
Crimp |
Gold |
|
|
 |

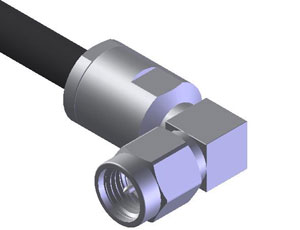

5013.SMA.PRC.08.111 |
RG58C/U, RG303/U |
Solder |
Crimp |
Gold |
|
|
|

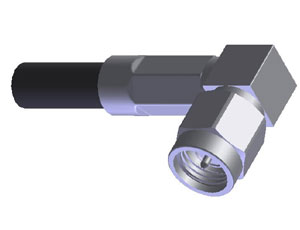

5014.SMA.PRC.09.111 |
RG142B/U, RG223/U, RG400/U |
Solder |
Crimp |
Gold |
|
|
 |
5203.SMA.PRC.08.111 |
RG58C/U |
Solder |
Clamp |
Gold |
|
|
|
5204.SMA.PRC.09.111 |
RG223/U |
Solder |
Clamp |
Gold |
|
|
